Forged Fitting



CARBON STEEL, ALLOY STEEL, STAINLESS STEEL FORGED PIPE FITTINGS MANUFACTURER, SUPPLIER IN INDIA

SOCKET WELD FITTINGS, THREADED FITTINGS, NIPPLES, BRANCH OUTLET FITTINGS, SWAGE NIPPLES

SUPPLIERS, EXPORTERS OF HIGH PRESSURE FORGED FITTINGS – ANSI B16.11, A182, A105, A105N, A350 LF2

A105 Forged Fittings Supplier in India, Stainless Steel Forged Fittings,A182 Forged Fittings, Carbon Steel Forged Fittings, Alloy Steel Forged Fittings, A350 LF2 Forged Fittings, Forged Elbow, Forged Tee, Forged Reducer, Coupling, Forged Cap, Forged Plugs, Bushing, Reducer Insert, Street Elbows, Boss, Threaded Fittings, Socket Weld Fittings, Forged Pipe Outlets, Branch Connection Fittings, Pipe Nipples, Hex Nipples, Swage Nipples, Stainless Steel Swage Nipples, 45 Degree Branch Outlets, Union, 45 Degree Elbows, 90 Degree Elbows, Street Elbows Manufacturer, A182 F91 Forged Fittings, A182 F22 Forged Fittings, A182 F11 Forged Fittings, A182 F9 Forged Fittings, A182 F5 Forged Fittings, HEX Head Plug, Square Head Plug, Round Head Plug, Reducing Coupling, Forged Stainless Steel Cross, Welding Outlets, Full Coupling, 3000Lbs forged fittings, 6000# forged fittings

We Manufacture forged pipe fittings for end-users and stockists all over the world. All our forged pipe fittings are supplied with test certificates as per EN 10204 3.1, with complete certifications of raw materials. New Seas Alloys L.L.P.also offers a range of Mechanical Testing, Hydro Testing, and Non-Destructive Testing such as PMI, Ultra Sonic, Radiography, and Hardness to client specifications. Other specific testing or certification requirements can be provided upon request. We are capable of supplying the 3000# and 6000# forged fittings with the shortest lead times. Our stock of ASTM/ASME SA105N Forged Carbon Steel ranges from 1/8’’ to 4’’NB, 3000# and 6000# Screwed NPT or BSPT and Socket Weld. We can offer forged fittings with additional surface coatings such as Sand Blast Finish, Blackodised Finish, Electro Zinc, Aluminised, Phosphated, Self Colour, and with Hot Dip Galvanising.

An ISO 9001:2015 Certified Company, New Seas Alloys L.L.P.is one of the leading manufacturers of high quality forged fittings in all major grades including ASTM A182, A105, A105N, A350 LF2, A182 F5, A182 F9, A182 F11, A182 F22, A182 F91. Our stainless steel and carbon steel ANSI Forged Fittings are available in 2000#, 3000#, 6000#, and 9000# pressure ratings and in either socket weld as or threaded ends. The raw materials used to manufacture forged fittings are purchased from reputed manufacturers in India. On the basis of skilled manpower and vast years of experience, New Seas Alloys L.L.P.has become a well-recognised name among customers worldwide.


Forged Steel Fittings, A105 Carbon Steel Forged Fittings, MS Forged Fittings, Stainless Steel Forged Fittings Manufacturer in India
An ISO 9001:2015 Certified Company, New Seas Alloys L.L.P.is India’s one of the most trusted manufacturer of forged fittings, socket weld forged fittings and threaded forged fittings. All our fittings are manufactured with tested raw materials and are supplied with NABL approved lab test reports. On demand, we can also provide, Hydro Testing Reports, Non Destructive Test Reports, or Destructive Test Reports. Forged fitings are manufactured in accordance with ASTM, DIN and ISO specifications.
Brand: New Seas Alloys L.L.P. Piping, Raw Material Origin Indian MIlls
Manufacturer: New Seas Alloys L.L.P. Piping
Model: MET2015, Certified Forged Fittings
Product ID: 1/2 inch to 4 inch 2000, 3000 class, 6000 class, 9000 class
We can also offer forged pipe fittings in Low Temp ASTM/ASME SA350 LF2 and Stainless Steel ASTM/ASME SA182 F304/L & F316/L. We manufacture and supply ANSI forged pipe fittings in all materials and pressures. On requests we can also manufacture forged fittings as per customer drawings at competitive prices. We are a specialist in the production and export of a wide range of pipe fittings in carbon steel, high yield, alloy steel, stainless steel, duplex, super duplex, nickel alloys and other exotic materials.

Forged fittings are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our forged steel fittings are manufactured in accordance with international standards.

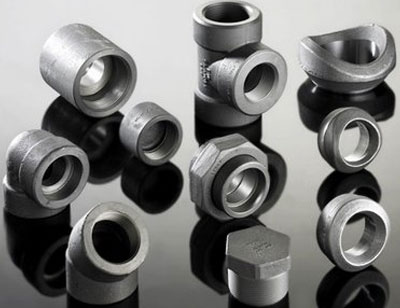

Our manufacturing and stocking program for steel forged fittings includes a complete range of products such as 90º Elbows, 45º Elbows, Tees, Crosses, Couplings, Reducers, Inserts, Caps, Nipples, and Unions. Forged socket weld fittings are available in class 3000, 6000 and 9000. Forged threaded fittings are available in class 2000, 3000 and 6000.Forged Pipe Fittings – Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Union, Nipples, Couplings, Plugs

High Pressure Socket Weld Forged Pipe Fittings


Pressure Class 3000LBS, 6000LBS, 9000LBS
Socket Weld Forged Fittings Products Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)

Pressure Class 3000LBS, 6000LBS, 9000LBS
Threaded Forged Fittings Products Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100)

Forged Pipe Fittings Manufacturing Standards


ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
ASME B16.11 Socket Welding and Threaded Forged Fittings
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 Swage(d) Nipples and Bull Plugs
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Forged Stainless Steel Fittings – Threaded and Socket Weld


Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
The material for forged stainless steel fittings conforms to ASME A182
The dimensions for forged stainless steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1

Forged Carbon Steel Fittings – Threaded and Socket Weld


Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1

Marking & Packing


Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance


At New Seas Alloys L.L.P. Piping, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:


Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
